Windows frame with quadruple gasket, in laminated wood with 3 layers to choose from: pine, fir, oak, okoumè, larch or other on request and external coating in Bronze alloy on frame. The fixed frame and turning sash are covered on the outside with profiles in bronze (brass) that can undergo the following treatments: Bronze Copper, Burnished and Antique.
Wood Surface treatment with products based on acrylic resins in aqueous emulsion; the applied cycle varies from three to six coats depending on the finish and the required durability.

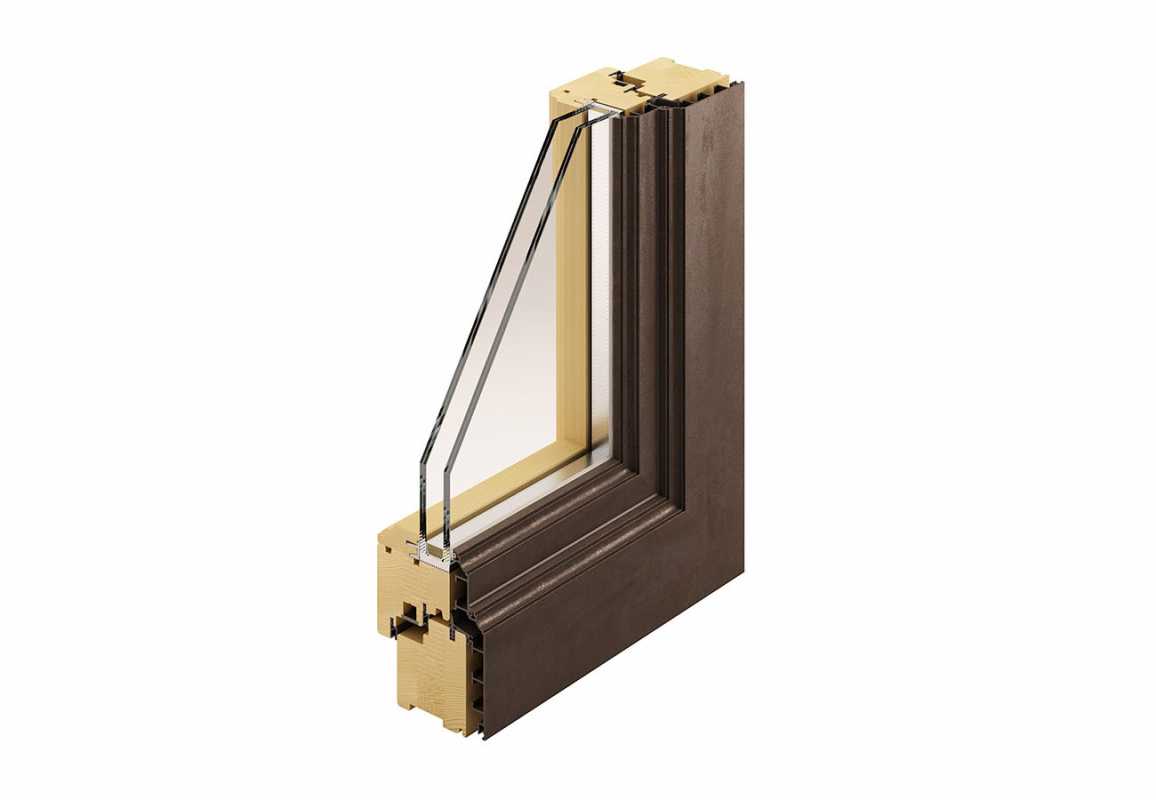

Fixed lamellar window frame nominal section 64 x 70 mm
Fix and turn sash nominal section 68 x 81 mm
Maico Multi-Matic as standard hardware with tilt and turn, lever rod and micro-ventilation. Complete with anti-burglary striker plates and pawls along the entire perimeter.
Triple abutment sealing profile with quadruple gasket.
Shaped glass stopper in different shapes (bevelled, square or rounded); Another variation is given by internal shape glass stopper with baroque geometry.
Use of low-emission single-chamber double glazing with standard Argon gas, in accordance with the current regulations. Of variable thicknesses and types (solar control, safety, acoustic, satin…) according to requirements. Standard pvc channel (spacer) PVC spacer called “warm edge” suitable for improving the thermal transmittance of the window frame, reducing linear thermal transmittance along the perimeter junction between glass and window frame.
Thermal insulation achievable up to UW value of 0.97 W/m2K.
*calculated thermal values (according to the standard UNI EN ISO 10077-1 and 2) with fir wood thermal transmittance on 1 sash dimensions 1230 x 1480mm (according to the standard UNI EN 14351-1), low-emission double glazing with value Ug = 0.7 (W/m²K).
Starting from 31 dB for windows based on glass noise reduction values up to 45 dB.
*possibility to insert different glasses in order to increase better acoustic abatement
To enhance your knowledge about our range, Giemme provides product technical drawings, a tool to increase the opportunity for users and professionals to immediately check sizes and solutions adopted.
