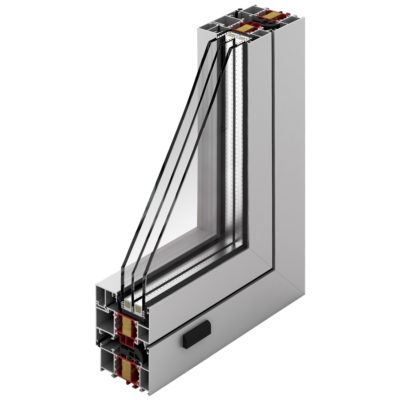

Windows in Aluminium – Alumil S60

DESCRIPTION
Doors and Windows made with open joint system with thermal break aluminum profile; the profiles in extruded primary aluminum alloy is ideal for anodizing treatments and painting; the profile’s thermal break is obtained through the insertion of 38 mm special strengthened polyamide bars for frames and 34mm for sash, both filled with polyurethane insulation, interposed between the two metallic elements, mechanically pressed. The frameworks are made with caulking system through heavy aluminum angular brackets that guarantee functional stability ad ensure the necessary resistance to strains.
The Alumil S60 for sash can be in four different shapes: squared, rounded, blunted, stylized.

DIMENSIONS
frame thickness mm 76,5
sash thickness mm 84

THRESHOLD DRAINING GASKET
Sealing profile triple frame, triple seal in EPDM; the open joint holding seal is assembled with vulcanized corners, also in EPDM. Drainage of the window insured by slots practiced within the lower cross of the frameworks and external holes covered by caps; thermal break threshold in aluminum and polyamide (h=18mm) on door-window.

OPERATING DEVICES
Supporting and closure hardware for tilt and turn opening according to European system designed for easy adjustment. Hinges with stainless steel pins and strengthens polyamide bushings; the sliding elements, including the angular transmissions and connecting bars are equipped with anti-friction pads in synthetic material. Standard safety devices are normally installed against wrong maneuvers, door lifting, anti-wind during tilt opening, and micro-ventilation.

INSULATED GLASS
Standard double pane, mono chamber, low emission type plus gas argon and aluminum spacer or on request “warm edge”; internal and/or external glass sheets, tempered or stratified as per minimum requirements set by the standards UNI 7697:2015; it is possible to add double pane double chamber with thickness not exceeding 62 mm.

FINISHING
the profiles can be painted or oxidized according to the colors provided for; the painted profiles are made according to the quality standards set by QUALICOAT o RAL-GSB, while the oxidized profiles are treated according to the quality standards set by the mark of quality EURAS-EWAA QUALANOD.
